DC to DC ATX PSU 12V 120W MINI ITX Pico ATX Power Supply

Energy Efficiency: Energy Efficiency Level Ⅴ / Ⅵ     View:
  • Brand:   LD
  • Type:     LD120WAP
  • Voltage:        DC 12V
  • Frequency:
Introduction

DC to DC ATX PSU 12V 120W MINI ITX Pico ATX Power Supply advantage

DC to DC ATX PSU 12V 120W MINI ITX Pico ATX Power Supply to Car ATX PC Power Supply,12V 120W DC ATX Power Supply,small volume.

DC to DC ATX PSU 12V 120W MINI ITX Pico ATX Power Supply Appearance photograph

120W DC ATX Power Supply

DC to DC ATX PSU 12V 120W MINI ITX Pico ATX Power Supply Electrical Specification

Model:LD120WAP
Rated power:120W
Input voltage range:12V DC (11.2VDC—14.8VDC)
Input surging current:12.0Vmax@12VDC
Work efficiency:≥90%
Working temperature/humidity:5℃ to 50℃ /45%-75%℃
Storage temperature/humidity:-40℃ to +70℃/10%-90%
Fanless DC-DC solution for 100% mute operating.
Compact design, special for mini-itx and 1U case.

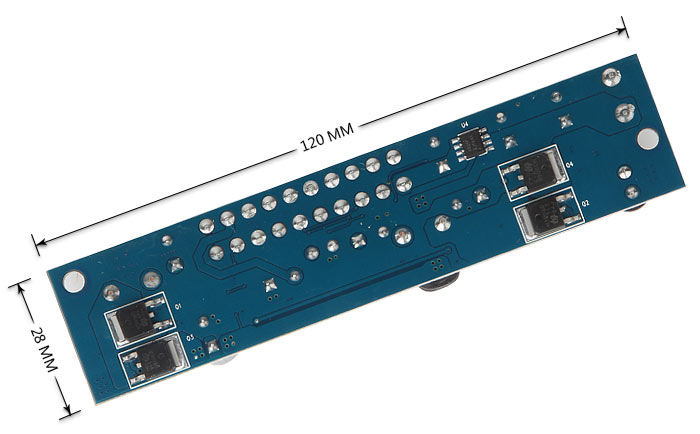

DC to DC ATX PSU 12V 120W MINI ITX Pico ATX Power Supply Size

Size

Protection

for+3.3V,+12V,+5.00V&+5.00VSB power output
OCP:output shut down when output current reaches the peak point.
Short-circuit protection:output shut down when short-circuit.

Input and output wire (customizable)

Input and output wire

Application

MINI computer,one computer,POS machine,digital set top box,ITX case,network server,advertisement machine,bank terminal.etc.

aracteristics and advantages

Strictly design and manufacture according to MINI-ITX power supply design specification.
Double sided PCB and SMT process are adopted.
High efficiency, small volume, good heat dissipation.
Multiple protection: over current, over voltage, short circuit multiple protection function.

DC to DC ATX PSU 12V 120W MINI ITX Pico ATX Power Supply Output parameter

Edition:LD120WAP
DC INPUT DC 12V
DC OUTPUT +12V +5V +3.3V -12V +5VSB

120W

MAX
COMINEO
WATTS
6A 5A 5A 0.15A 2.0A
POWER 120W
