6V 1400MA AC/DC Adapter Power Supply,6V 1.4A AC/DC Adapter-GA060014

Energy Efficiency: Energy Efficiency Level Ⅴ / Ⅵ     View:
  • Brand:   sinyang
  • Type:     GA060014
  • Voltage:        100~240V
  • Frequency:    50~60Hz
Introduction

6V 1.4A AC/DC Switching Power Supply characteristics

6V 1400MA AC/DC Adapter Power Supply With a short circuit , overload , over-voltage protection function . 6V 1.4A AC/DC Switching Power Supply The anti-jamming performance is good , reliable performance is high .

6V 1.4A power Adapter Technical parameters

Model Number : GA060014
Output voltage : 6V
Output current : 1400MA
Input voltage Range : 100~240Vac
Input voltage frequency : 50~60Hz
Output voltage regulation : 5%
Hi-pot test> : 3KV , 10mA , 5S
Ripple and noise ( mVp-p ) : < : 1% of output voltage
Variation voltage : 90~264V
Variation Frequency : 47~63 Hz
Hold time : >/= 10mS
operation temperature : -20℃ ~ +45℃ , 5% - 90%RH
storage temperature : -25℃ ~ +85℃ , 5% - 95%RH
Protection : OCP , OVP , SCP and OPP
Burn-In Test : Full Load with 4 hours at 40 ± 5℃
Output connector : USB or DC Plug
DC Jack ( Plug ) : According to customer requirements
M.T.B.F.: 30000 HOURS Min ; 25℃ SEE CONDITION
COOLING : SHOULD OPERATE WITHOUT FAN
Protection : over voltage protection short circu ited protection over power protection
Leakage current : 0.25 mA MAX 264V AC
Standby power dissipation : Less than 0.1W/0.15W ( Energy Efficiency Level Ⅵ ) ; Less than 0.3W ( Energy Efficiency Level Ⅴ )
Operation model : constant voltage

6V 1400MA Switch Ac/dc Power Adapter Safety certification

CB , UL , TUV , CCC , BSMI , SAA , PSE , CE , FCC , C-TICK , etc . Meet all related safety standard , Ultra low no-load/standby power consumption , meet CEC V , CEC , MEPS , ERP , CoC , DoE , ROHS , green power requirements

6V 1.4A AC/DC Adapter Plug type

EU , UK , AU , CN ,US , JPN , Taiwan , VDE plug

6V 1400MA power Adapter 6V 1400MA power Adapter 6V 1400MA Switch
Ac/dc Power Adapter 6V 1.4A AC/DC Adapter
Power Supply

6V 1400MA Switch Ac/dc Power Adapter Color

White or black or ; Modulate color according to customers requirement.

6V 1400MA Switch
Ac/dc Power Adapter 6V 1.4A AC/DC Adapter
Power Supply

6V 1.4A AC/DC Adapter Dimension

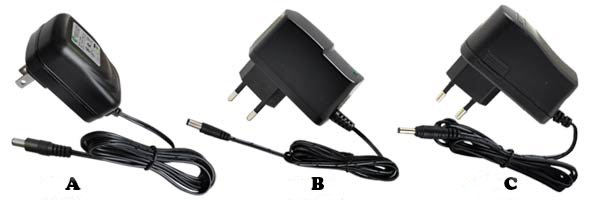

( A ) 68.0(L)*41.0(W)*29.0(H)mm ( B ) 73.0(L)*43.0(W)*27.0(H)mm ( C ) 74.5(L)*46.2(W)*29.9mm

6V power adapter

The 6V power adapter series model

GA060YYY Model Inside 060 which represent the output voltage 6V , YYY are 3 digit numbers from 001 to 040 which represent the output current from 0.1 A to 4.0 A , The step value is 0.1 A

6V AC/DC Adapter
Power Supply 6V AC/DC Switching Power
Supply

6V AC/DC Adapter
Power Supply  6V
AC/DC Switching Power Supply

6V Series Wall Mount AC DC Adapter Model and Output Specifications

Model Output Specifications Model Output Specifications Model Output Specifications
GA060001 6V 100MA AC DC Adapter GA060015 6V 1.5A AC DC Adapter GA060029 6V 2900MA AC DC Adapter
GA060002 6V 200MA AC DC Adapter GA060016 6V 1600MA AC DC Adapter GA060030 6V 3A AC DC Adapter
GA060003 6V 300MA AC DC Adapter GA060017 6V 1700MA AC DC Adapter GA060031 6V 3100MA AC DC Adapter
GA060004 6V 400MA AC DC Adapter GA060018 6V 1800MA AC DC Adapter GA060032 6V 3200MA AC DC Adapter
GA060005 6V 0.5A AC DC Adapter GA060019 6V 1900MA AC DC Adapter GA060033 6V 3300MA AC DC Adapter
GA060006 6V 600MA AC DC Adapter GA060020 6V 2A AC DC Adapter GA060034 6V 3400MA AC DC Adapter
GA060007 6V 700MA AC DC Adapter GA060021 6V 2100MA AC DC Adapter GA060035 6V 3.5A AC DC Adapter
GA060008 6V 800MA AC DC Adapter GA060022 6V 2200MA AC DC Adapter GA060036 6V 3600MA AC DC Adapter
GA060009 6V 900MA AC DC Adapter GA060023 6V 2300MA AC DC Adapter GA060037 6V 3700MA AC DC Adapter
GA060010 6V 1A AC DC Adapter GA060024 6V 2400MA AC DC Adapter GA060038 6V 3800MA AC DC Adapter
GA060011 6V 1100MA AC DC Adapter GA060025 6V 2.5A AC DC Adapter GA060039 6V 3900MA AC DC Adapter
GA060012 6V 1200MA AC DC Adapter GA060026 6V 2600MA AC DC Adapter GA060040 6V 4A AC DC Adapter
GA060013 6V 1300MA AC DC Adapter GA060027 6V 2700MA AC DC Adapter
GA060014 6V 1400MA AC DC Adapter GA060028 6V 2800MA AC DC Adapter
